Product Overview

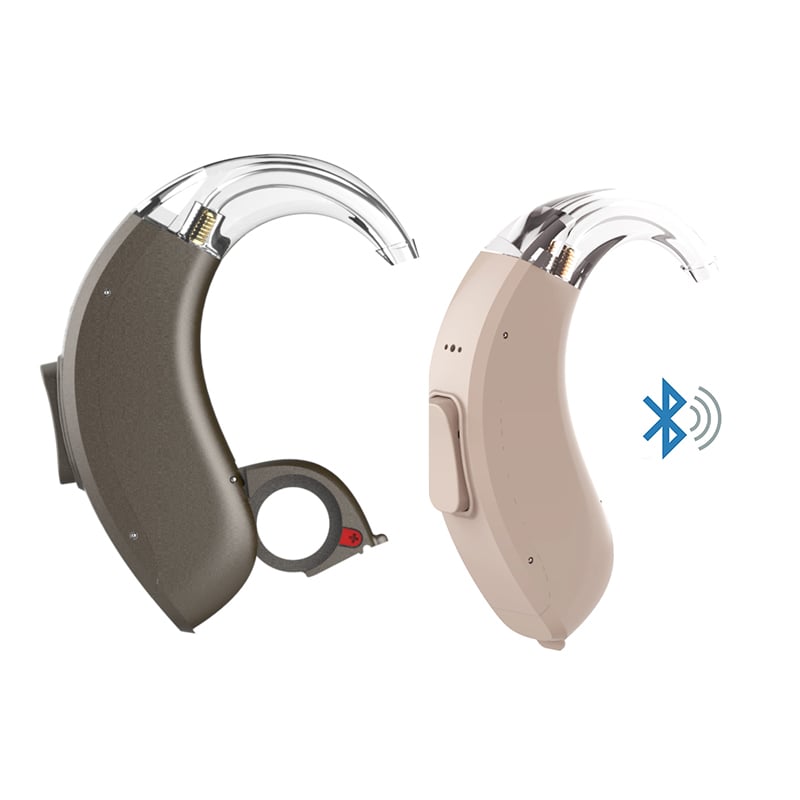

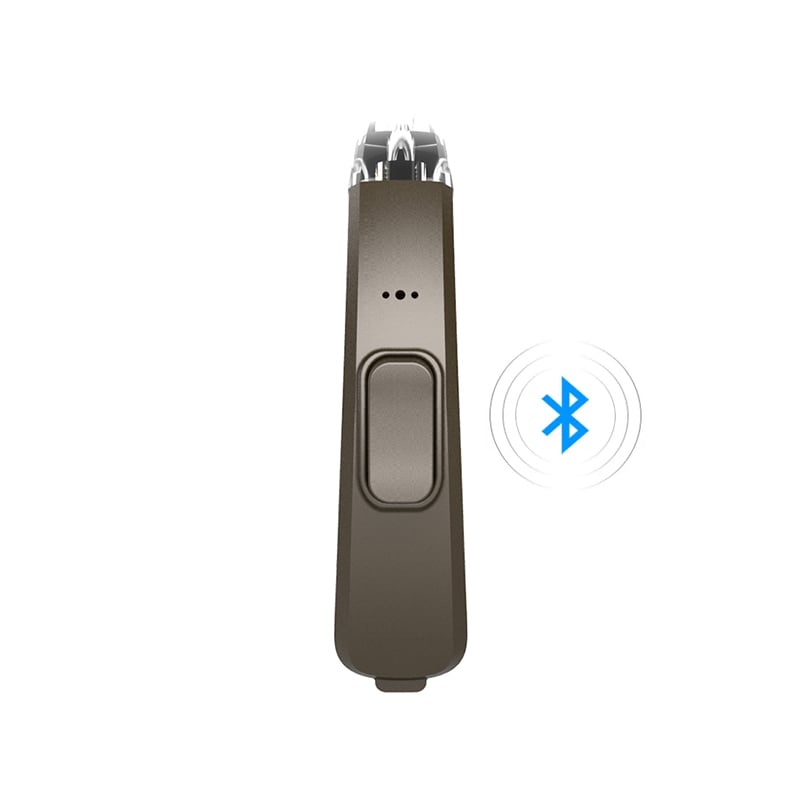

The CW12-BTE-P is a 12 channel app fitting BTE hearing aid developed for hearing aid distributors, audiology clinics, hearing centers, medical device importers and professional hearing care organizations that require a digitally supported fitting workflow within a clearly structured BTE platform.

Built on the ACOD3101 intelligent multi-core DSP platform, CW12-BTE-P provides 12 independently adjustable compression and amplification channels, 24 independently adjustable bands and 48 DSP channels. ERAC 2.0 Context Analysis Based Intelligent Multi-Compression Technology with a Multi-Knee structure provides the compression foundation.

Feedback management is provided by DFBC 3.0 Advanced Feedback Cancellation with two levels, together with SIW technology. The environmental-processing package includes Self-Adaptive Environment Recognition and ENDR 2.0 Environment Detection and Noise Reduction specified at up to 20 dB. Intelligent Transient Noise Management and Intelligent Wind Noise Management are included. Directional Dual-Microphone Technology and Directional Speech Enhancement Technology are both specified as Advanced.

The model also supports app volume control, app program switching, app remote fitting, app auto fitting, app professional fitting and app smart fitting. TMT Tinnitus Masking Technology is included.

For B2B buyers, CW12-BTE-P combines a 12 / 24 / 48 fitting structure with app-supported professional functions, giving distributors and hearing care organizations a practical starting configuration in the CW-BTE-P family.

App-Supported Fitting and Follow-Up

A central feature of the 12 channel app fitting BTE hearing aid is its set of supported app functions. The model supports app volume control and app program switching for device adjustment, together with app remote fitting, app auto fitting, app professional fitting and app smart fitting.

For hearing care organizations, these functions can support a more flexible professional workflow across fitting, adjustment and follow-up. For distributors, the app-supported function set adds a digital-service dimension that can be presented alongside fitting channels, DSP capacity and environmental-processing specifications.

Four selectable programs are also included. This gives professional teams a combination of device-level program options and app-supported functions for different fitting and follow-up requirements.

For organizations comparing several models within one product family, the app function set remains consistent across the CW-BTE-P range. Model selection can therefore focus on fitting capacity and processing tier while retaining the same group of supported app functions.

12 / 24 / 48 Fitting Architecture

CW12-BTE-P provides 12 independently adjustable compression and amplification channels, 24 independently adjustable bands and 48 DSP channels.

This 12 / 24 / 48 structure gives professional fitting teams defined adjustment capacity while remaining straightforward for distributors to communicate through catalogs, technical sheets, quotations and product training.

Within the CW-BTE-P family, the 12 channel app fitting BTE hearing aid establishes the first fitting tier. CW16-BTE-P increases fitting channels, adjustable bands and DSP channels while retaining the same Self-Adaptive environmental-processing category. CW24-BTE-P then introduces the Intelligent processing tier.

This structure gives B2B buyers a clear comparison path based on channel architecture and processing specifications rather than generic tier labels.

Self-Adaptive Environmental Processing

CW12-BTE-P uses Self-Adaptive Environment Recognition together with ENDR 2.0 noise reduction specified at up to 20 dB.

Intelligent Transient Noise Management and Intelligent Wind Noise Management are included. Directional Dual-Microphone Technology and Directional Speech Enhancement Technology are both specified as Advanced.

Feedback management uses DFBC 3.0 Advanced with two levels, and SIW technology is included. Compression is based on ERAC 2.0 Multi-Knee technology.

For professional buyers, this combination defines the lower processing tier of the CW-BTE-P family and creates a clear distinction from the Intelligent Environment Recognition and Intelligent directional-processing configuration used in CW24-BTE-P and CW32-BTE-P.

Electroacoustic Reference Profile

CW12-BTE-P provides a maximum OSPL90 of 128 dB, HFA OSPL90 of 119 dB, maximum FOG50 of 52 dB and HFA FOG50 of 42 dB.

The specified frequency range is 200–5500 Hz, battery current is 2.5 mA and EQ is 25 dB. THD at 500 Hz, 800 Hz and 1600 Hz is specified at 3%.

For distributors, these figures provide reference points for technical comparison, sample evaluation and product documentation. For buyers considering a 12 channel app fitting BTE hearing aid, the electroacoustic profile can be assessed together with the 12 / 24 / 48 fitting structure, ACOD3101 DSP platform and app-supported workflow.

Professional Device Functions

CW12-BTE-P includes an Internal Sound Field Assessment System and Internal Audiometer System. Additional functions include Adjustable Turn-on Delay, Occlusion Effect Management, Low Battery Power Notification, Adjustable Notification Volume, Volume Control, FM Interface Compatibility, Auto Phone Function and Memory After Power-off.

Personalized Data Storage is specified as Medium.

Nano Coating Technology is included.

TMT Tinnitus Masking Technology is included.

These functions complement the fitting architecture and app-supported workflow, giving hearing care organizations a broad professional device-management specification for assessment, fitting and follow-up.

B2B Portfolio Positioning

As a 12 channel app fitting BTE hearing aid, CW12-BTE-P is suitable for distributors, importers, audiology clinics and hearing centers that require a professional BTE platform combining app-supported fitting functions with a Self-Adaptive environmental-processing tier.

Its product identity is built around 12 fitting channels, 24 adjustable bands, 48 DSP channels, ACOD3101, DFBC 3.0 Advanced, Self-Adaptive Environment Recognition, ENDR 2.0 up to 20 dB and Advanced directional processing.

CW12-BTE-P can serve as the starting configuration in the family before buyers move to greater fitting capacity or the Intelligent processing tier.

Technical Specifications

FAQ

How many fitting channels does CW12-BTE-P provide?

It provides 12 independently adjustable compression and amplification channels, 24 adjustable bands and 48 DSP channels.

Which app functions are supported?

The model supports app volume control, app program switching, app remote fitting, app auto fitting, app professional fitting and app smart fitting.

Which Environment Recognition system is included?

Self-Adaptive Environment Recognition is included.

What is the ENDR specification?

ENDR 2.0 is specified at up to 20 dB.

Is TMT included?

TMT Tinnitus Masking Technology is included.

Contact AcoSound

Looking for a 12 channel app fitting BTE hearing aid for your professional product portfolio?

Contact AcoSound for CW12-BTE-P specifications, sample information and B2B project support.
